Carbon dioxide (chemical formula CO2) is a chemical compound composed of two oxygen atoms covalently bonded to a single carbon atom. It is a gas at standard temperature and pressure and a colorless, odorless, tasteless gas that is about one and one-half times as dense as air under ordinary conditions of temperature and pressure.

Carbon dioxide has varied commercial uses.

	Beverages
	Foods
	Pneumatic systems
	Fire extinguisher
	Welding
	Pharmaceutical and other chemical processing
	Agricultural and biological applications
	Lasers
	Oil recovery
	As refrigerants
	Coal bed methane recovery
	Wine making
	See water desalination
	PH control

There are three principal commercial sources for carbon dioxide. High-purity carbon dioxide is produced from some wells. The gas is obtained as a byproduct of chemical manufacture, as in the fermentation of grain to make alcohol and the burning of limestone to make lime. It is also manufactured directly by burning carbonaceous fuels. For commercial use it is available as a liquid under high pressure in steel cylinders, as a low temperature liquid at lower pressures, and as the solid dry ice.

We design, manufacture, supply and commission CO2 generation, recovery, purification plants on turnkey basis.

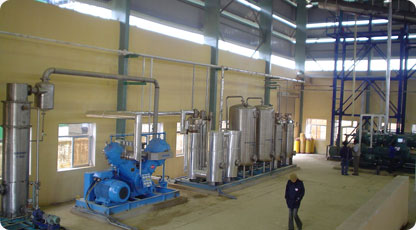

Carbon Dioxide Generation Plant

Carbon dioxide is generated by combustion of fossil fuel such as gas, light diesel oil or kerosene. CO2 thus produced as a flue gas is separated by mean of monoethanol-amine solution (MEA). It is further purified, dried and liquefied to get the desired purity and finally stored in a storage vessel. Theses plants are modular in design to ease its installation. It is supplied with all related equipments and accessories to suite for individual customer for their captive consumption of for gas selling merchants for tanker and cylinder filling station on turnkey basis. The capacity of these plants ranges from 50 to 1000 kgs/hr and the purity from technical grade to food grade.

Carbon Dioxide Recovery Plant

The Gas is recovered from any existing sources like,

	Recovery from flue gases
	Recovery from Chemical Process
	Recovery from Natural sources
	Recovery from Brewery/distillery Fermentation
	Recovery from waste gas of dry ice machines
	Recovery from Bio-ethanol plant.

The recovered gas is again purified, dried and liquefied to get the desired purity. These type of plant are again modular and the capacity range from 50 to 2000 kgs/hr.. In these plants , the purification systems are different for each of the above mentioned sources because the impurities are different from each source of recovery. These plants are also for custom designed to suit for every individual customer or gas merchants Gas recovered and purified can either be used is gaseous or liquid form .

CO2 production / Recovery plant's salient features

	Easy Operation and maintenance
	Compact in design
	Highest quality of manufacturing
	Modern and reliable equipments
	Plant design to meet highest international standards
	Low production costs and high purity of final product

Other Related Equipments/Accessories
