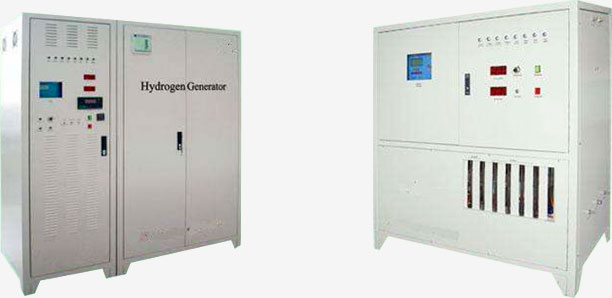

HYDROGEN GENERATION SYSTEM BY WATER ELECTROLYSIS

Principle

Electrolysis of water is the decomposition of water (H2O) into oxygen (O2) and hydrogen gas (H2) due to an electric current being passed through the water.



Calorie HNT Private Limited



Process

An electrical power source is connected to two electrodes, or two plates (typically made from some inert metal such as platinum or stainless steel) which are placed in the water. In a properly designed cell, hydrogen will appear at the cathode (the negatively charged electrode, where electrons enter the water), and oxygen will appear at the anode (the positively charged electrode). Assuming ideal faradic efficiency, the amount of hydrogen generated is twice the number of moles of oxygen, and both are proportional to the total electrical charge conducted by the solution.



Design Features

The system is modular in design and very compact.It is properly instrumented and automatically controlled by industrial grade PLC / Microprocessor system. Color touch screen display HMI ( Human Machine Interface) shows all the parameters and alarms. The control system is realized following a "fail safe" technology in order to maximize plant safety. Plant design and construction comply all relevant international standards and E.C directives

Specifications
Product Gas

-

Hydrogen
Capacity

-

100 ml/min - 500 Nm3/hr
Purity

-

> 99.9% (Standard) to 99.9999999% (After Purifier)
Pressure

-

4 Bar to 200 bar
Dew Point

-

(-) 20ΒΊ C to (-) 80ΒΊ C

Applications

Heat Treatment
Vegetable Oil
Chemical synthesis of ammonia, methanol, hydrogen peroxide, polymers, and solvents.
Gas Purification
Float Glass Manufacturing
Manufacture of semi-conducting layers in integrated circuits
Turbine Cooling in power plants
Nuclear fuel industry, hydrogen as a protective atmosphere in the fabrication of fuel rods
Fuel for vehicles,
Fuel Cells





Calorie HNT......

A generation ahead
