Principle
PSA is a technology
used to separate some gas species from a mixture of gases under
pressure according to the species' molecular characteristics and
affinity for an adsorbent material. It operates at near-ambient
temperatures and so differs from cryogenic distillation techniques
of gas separation. Special adsorptive materials ( Carbon Molecular
Sieves) are used preferentially adsorbing the target gas species
at high pressure. The process then swings to low pressure to
desorb the adsorbent material.
Process

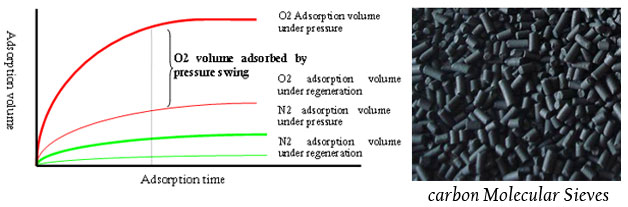

Pressure swing
adsorption processes rely on the fact that under pressure,
gases tend to be attracted to solid surfaces, or
"adsorbed". The higher the pressure, the more gas is
adsorbed; when the pressure is reduced, the gas is
released, or desorbed. PSA processes can be used to
separate gases in a mixture because different gases tend
to be attracted to different solid surfaces more or less
strongly. If a gas mixture such as air, for example, is
passed under pressure through a vessel containing an
adsorbent bed that attracts Oxygen more strongly than it
does Nitrogen, part or all of the Oxygen will stay in the
bed, and the gas coming out of the vessel will be
Nitrogen. When the bed reaches the end of its capacity to
adsorb Oxygen, it can be regenerated by reducing the
pressure, thereby releasing the adsorbed Oxygen. It is
then ready for another cycle of producing Nitrogen.

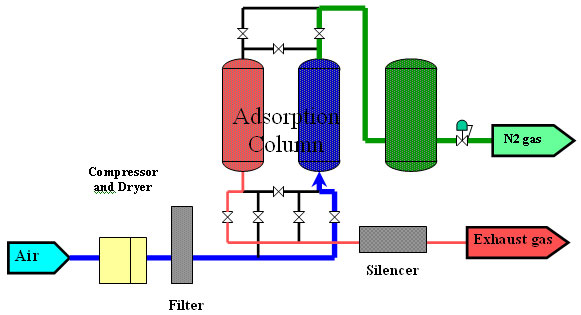

Using two adsorbent vessels allows near-continuous
production of the target gas. It also permits so-called
pressure equalization, where the gas leaving the vessel
being depressurized is used to partially pressurize the
second vessel. This results in significant energy savings,
and is common industrial practice.
|
